Product Description

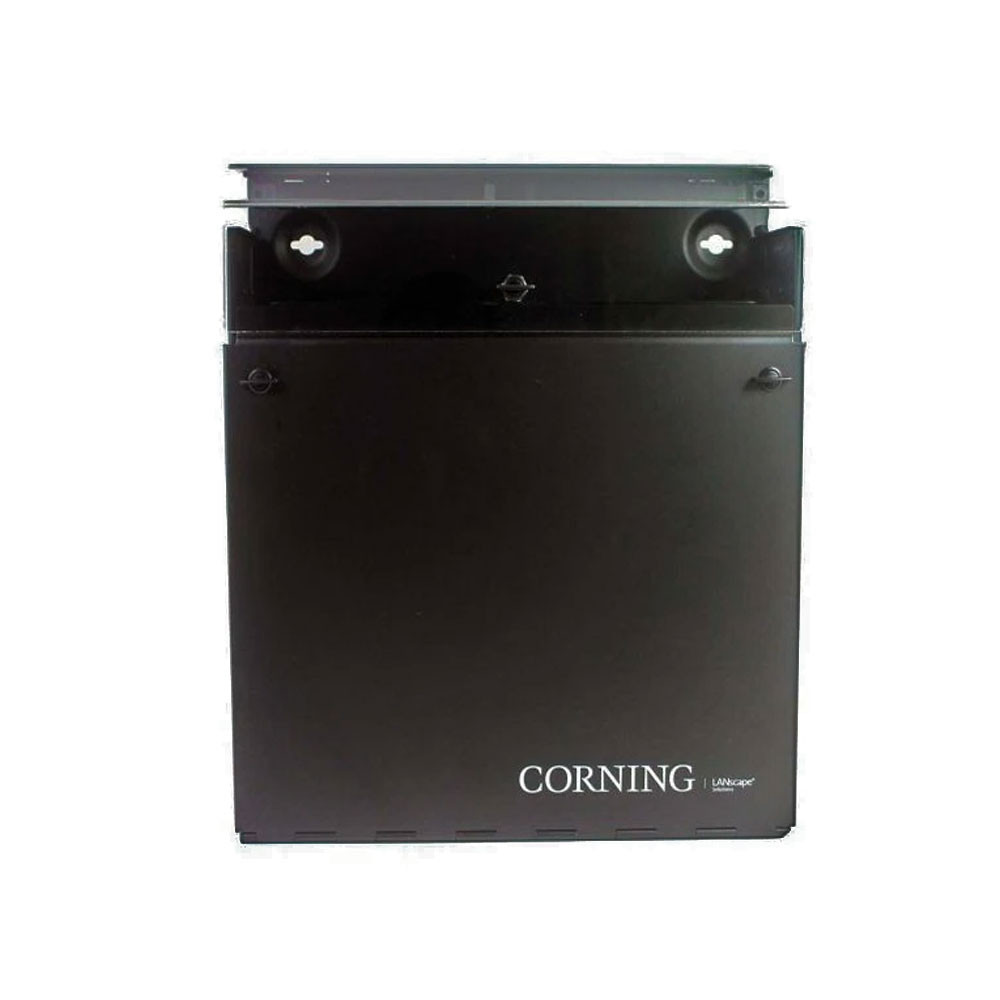

Corning 4 Slot CCH Patch Panel Wall Mount - WCH-04P
- Holds 4 CCH adapter panel modules
- Wall mount is unloaded
Dimensions
Height 357mm (14.06in)
Width 410.5mm (16.16in)
Depth 119mm (4.69in)
| Package Contents | Housing; installation guide; 4 blank panels; 4 panel ID labels; hardware kit; internal strain-relief bracket; intermediate strain-relief bracket; 4 x 4-in tie wraps; 4 x 8-in tie wraps; dust brushes; 4 mounting screws; bubble level |
Corning Cable Systems Wall-Mountable Connector Housings provide interconnect or cross-connect capabilities between the outside plant, riser, or distribution cables and the opto-electronics.
The unit can be wall-mounted in main cross-connects (MCs) or telecommunication rooms (TRs). It holds 4 Corning CCH connector panels which provides up to 24 fiber connections.
Optional locking kit for the center door is available for extra protection. Also available are optional splice tray holder and splice trays to enable patch and splice for your application.
