Product Description

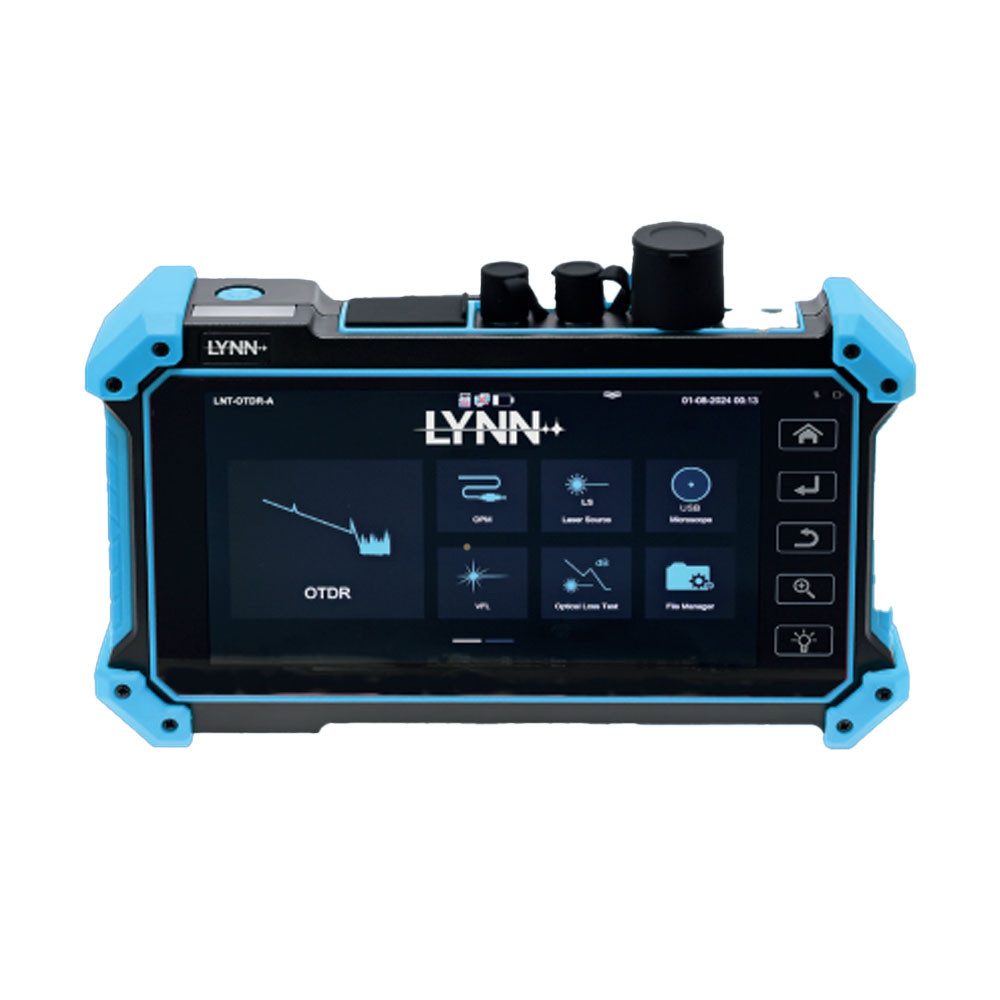

Lynn Mini SM OTDR 1310/1550 - LNT-OTDR-A
Spec Sheet
Instruction Sheet
The mini OTDR tester is a powerful, easy-to-use multifunction tester for both twisted pair and fiber optic cables – the essential tester for field technicians and network engineers. The mini OTDR provides a variety of cable length, quality and mapping tests, including optical time domain reflectometer (OTDR), continuity, loss, event wiremap, IP and fault testing.
- Compact Form Factor: Ruggedized form factor
with a 4-6hr battery life, or charge on the go! - Multi-Functional Testing: Multiple tests offered
for both fiber and copper testing. - Active Network Testing: Built-in LLDP, PPPoE, IP
Scan, and Ping testing provide quick insight into
active network conditions. - Equip Every Technician: Accessible pricing makes
it practical to outfit every truck with a reliable, all purpose tester. - Quick Cable Checks: RJ45 continuity and TDR
length measurements help pinpoint issues faster. - Track Performance Over Time: Export results as
PDF or SOR - for easy reporting, record-keeping,
and trend comparison. - All-In-One Field Tool: Integrated VFL, 10 mW visual
fault locator, optical power meter, light source, and
built-in flashlight streamline testing and improve
efficiency.
Technical Specifications
Size and Display: 5.55 inch screen display, 1280*720 resolution
Network Port: 10/100/1000M auto adapt (optional)
Optical Power Meter (OPM): 1625, 1550, 1490, 1310, 1300, and 850nm
Max Testing Length: Twisted pair TDR: 600m / 1668ft Fiber OTDR: 105km / 65 miles
Network Test: IP Scan, PPPOE, port flashing, Ping test (optional)
Linearity (dB/dB): ±0.05 dB/dB
Wavelength (nm): 1310/1550
Visual Fault Locator (VFL): 10mW 650nm laser
Dynamic Range(dB)2: 28/26
Pulse Width (ns): 5, 10, 20, 30, 50, 80, 160, 300, 500, 800, 1000, 2000, 4000, 6000,
10000, 20000
Testing Range: ≤105Km
Event Blind Zone (m)3: ≤1.6m
Attenuation Blind Zone (m)3: ≤8m
Loss threshold (dB): 0.05
Loss Resolution Ratio (dB): 0.01
Minimum Distance Resolution: 0.05
Sampling Point (K): 32-128
Distance Uncertainty (m): ±(1 m + 5×10-5× distance + sampling interval)
Distance Scope (km): 0.5, 1, 2, 5, 10, 25, 50, 100, 200
Typical Real-time Refreshing Duration: 1s
File format: SOR standard format/PDF/EXCEL
Measurement Duration: 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
Storage: FLASH (EMMC)8G + TF card
Interface Type: SC-UPC
