Product Description

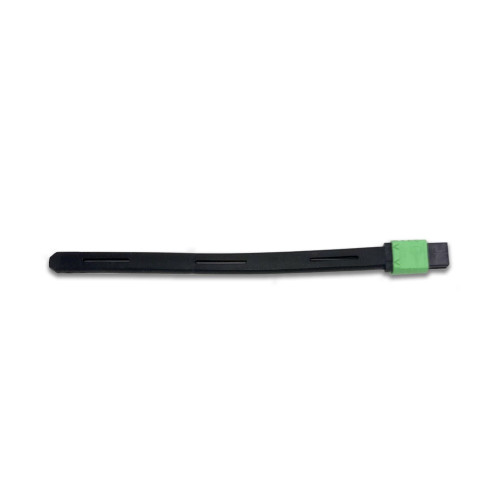

Optix - 12F MPO APC No Pins - 3X 250um Singlemode APC Splice-on Connector (Six Pack) - 3XSOC-MPO-SMA-F-250-6
- Qty 6 - 3X 250um MPO Female (No Pins) Single Mode APC Splice-on Connector (Six Pack)
- 12 fibers per connector
- Up to three opportunities to re-splice or reuse the connector
- Splices easily on any brand fusion splicer
- Only three parts - silicon boot (126mm), steel-plated splice sleeve (30mm),fiber stub (122mm)
- Flexible silicon boot routes easily and neatly even in tight wall enclosures
- Excellent strain relief and protection
- Double steel-plated splice sleeve for maximum splice area protection
- No special holders needed
The 3X MPO splice-on connector easily splices on any brand fusion splicer and only requires a fiber cable holder for splicing, a much simpler design which eliminates a need for expensive connector holders that are not universal to fusion splicers. Made only with Corning cable, our connector provides up to three opportunities to splice fiber ends correctly, thus saving money on “failed splice” connections.
Still another advantage is that an increased boot length provides excellent strain relief and offers better protection at the fragile splice point. The 30mm splice sleeve is steel-plated on both sides to avoid crushing and stressing the end fibers typically caused by shrinkage upon heating ribbon cable. Designed to be spliced with 250um ribbon, rollable ribbon, or loose tube cable, this connector simplifies the termination of a multi-fiber connection, allowing for a reliable termination in field applications
