Product Description

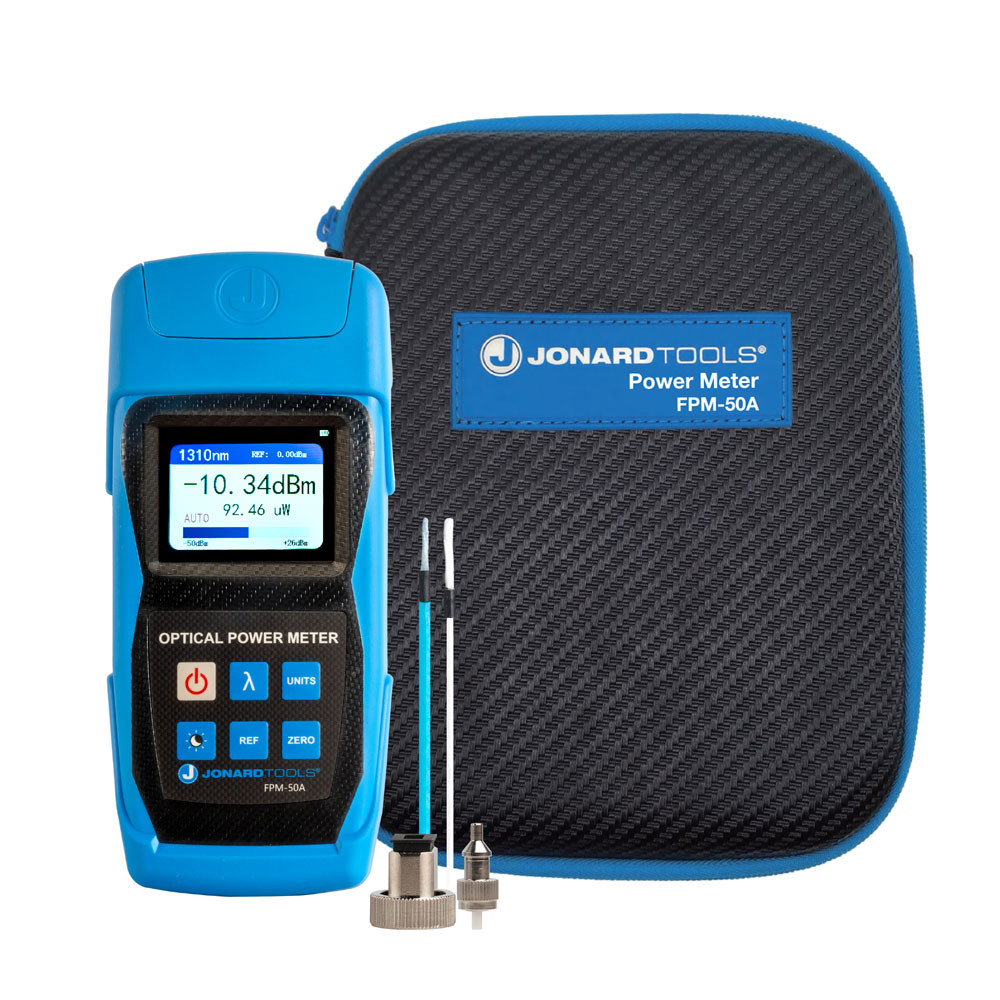

Jonard FPM-50A Fiber Optic Power Meter SM/MM with FC/SC/LC Adapters for PC/UPC/APC Connectors
The Jonard Tools Fiber Optic Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:
- Includes FC, SC, and LC adapters to directly connect to UPC/APC/PC FC, SC, and LC fiber connectors
- Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
- Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
- Special function of the unit allows the device to be manually calibrated as needed
- Comes with FC, LC, and SC adapters so that fiber connectors can be directly connected to the tool
- LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
- Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime
Includes:
- Fiber Optic Power Meter
- Instruction Manual
- Protective Cover
- (3) AA Batteries (required for operation)
- (2) Cleaning Swabs
- FC Adapter
- LC Adapter
- SC Adapter
- Nylon Carry Case
Specifications
| Connector Types |
FC, SC, LC |
|---|---|
| Calibrated Wavelengths (nm) |
850, 980, 1300, 1310, 1490, 1550, 1625, 1650 |
| Detector Type |
InGaAs |
| Measurement Range |
-50 dBm to +26 dBm |
| Single Mode Range |
980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB |
| Multi Mode Range |
850, 1300 nm, ≤ ± 0.8 dB |
| Resolution |
0.01 dB |
| Operating Time |
≥ 130 hours |
| Battery Type |
(3) AA batteries |
| Dimensions |
7" x 3.25" x 1.5" (17.78 cm x 8.26 cm x 2.54 cm) |
| Weight |
1.50 lb (680 g) |
| UPC No. |
811490019966 |
