Product Description
Jonard Multimode / Singlemode Optic Light Source - FLS-55
Designed to provide 850/1300 nm or 1310/1550 nm wavelengths, this optical light source is the perfect tool for providing a stable light source for multimode or single mode fiber measurements. This optical light source features the following:

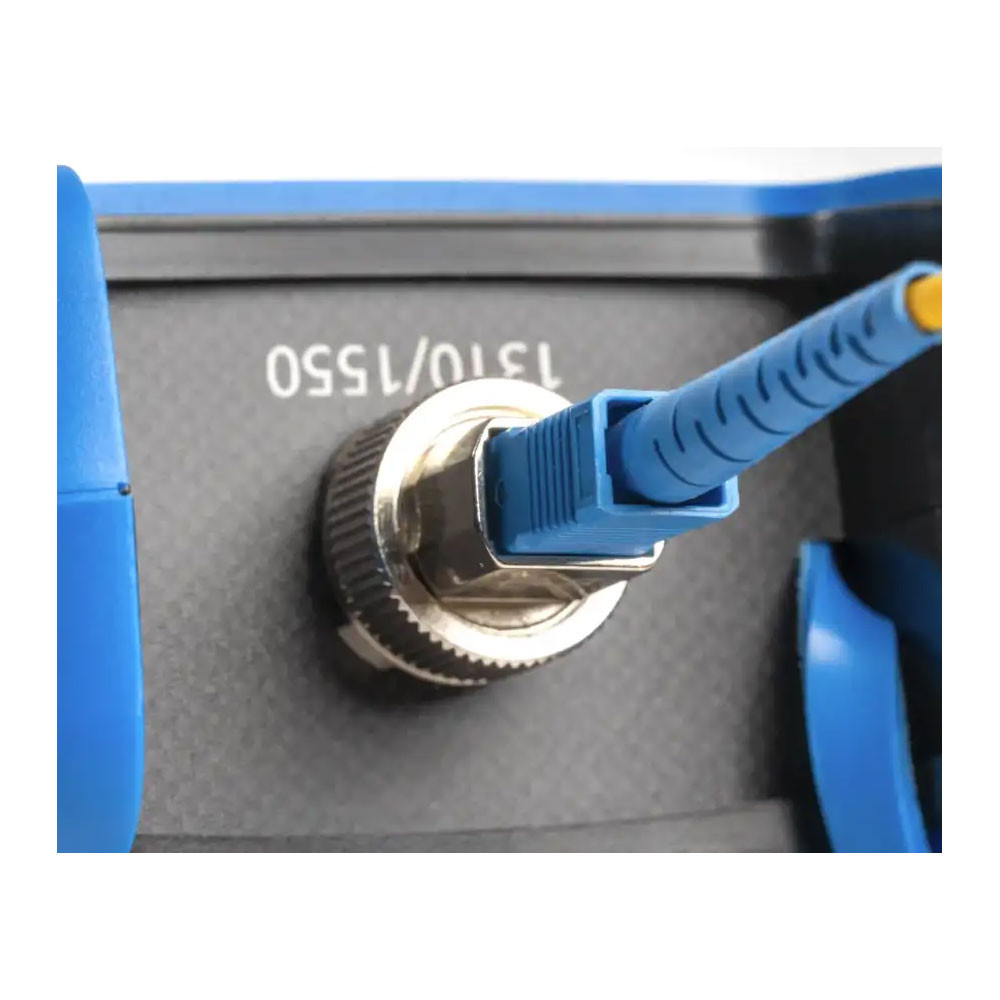

- Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors
- Highly stable output power and wavelengths
- Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 850/1300 nm (multimode) and 1310/1550 nm (singlemode) wavelengths
- Flush button design makes it easy to use and prevents dust from entering the unit

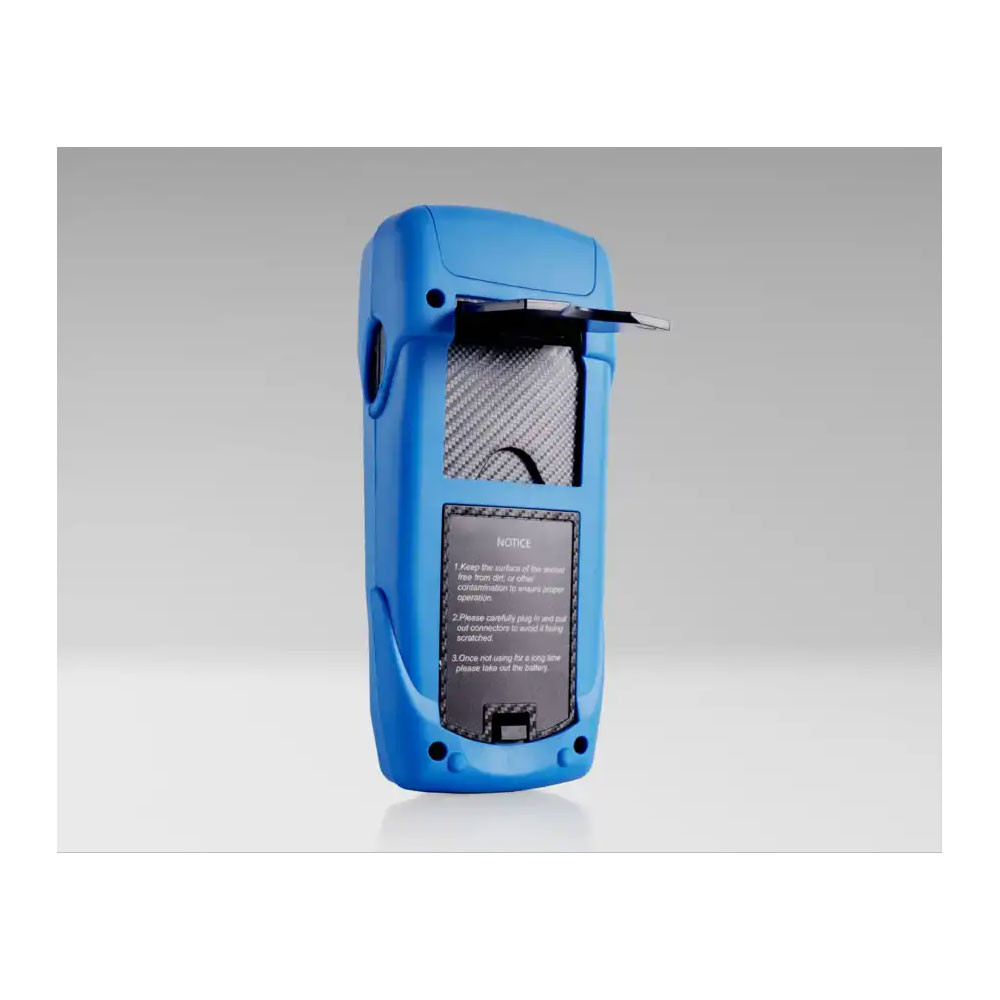

- Shatter-resistant sleeve protects the light source from falls or other damage
- Backlit LCD screen provides a clear display, ideal for dark places
Includes:
- Fiber Optic Light Source (MM/SM)
- FC Adapter
- LC Adapter
- SC Adapter
- (2) Cleaning Swabs
- (3) AA Batteries (required for operation)
- Storage Pouch
Specifications
| Fiber Types |
Multimode & Singlemode |
|---|---|
| Connector Types |
1.25 mm LC and 2.5 mm FC/SC |
| Wavelengths (nm) |
850, 1300, 1310, 1550 |
| Typical Output Power |
-7 dBm |
| Output Stability |
± 0.05 dB / 15 min or ± 0.1 dB / 8 hr |
| Operating Temperature |
-10 ± 60°C |
| Spectral Width |
≤ 10 nm |
| Modulation Frequencies |
CW / 270 Hz / 1 kHz / 2 kHz |
| Battery Type |
(3) AA 1.5V alkaline batteries |
| Storage Temperature |
-25 ± 70°C |
| Dimensions |
7" x 3 3/16" x 1 1/4" (17.78 cm x 8.10 cm x 3.18 cm) |
