AFL 100R + Ribbon Fusion SpliceReady Kit - S018713

Product Description

AFL 100R + Ribbon Fusion SpliceReady Kit - S018713

Spec Sheet

Fujikura 100R SpliceReady Splicer Kit Includes: Fujikura 100R Standard Kit (S018665), FP-05 40 mm protection sleeve, Splicer V-groove cleaning kit, AFL WFW wipes mini tub (90 wipes), FCC2 fiber cleaning fluid (3 oz.), RT-02 Ribbonizing tool

• Features

  • Intelligent Alignment Controls for hands-free alignment
  • Auto Placement Correction for proper fiber seating
  • Gap Alignment Correction for uniform endface gaps
  • Axis Offset Correction for consistent fiber alignment
  • Cleaver tracking and upkeep with wireless communication
  • Automated wind protector, tube heater and splice operation
  • User replaceable V-grooves

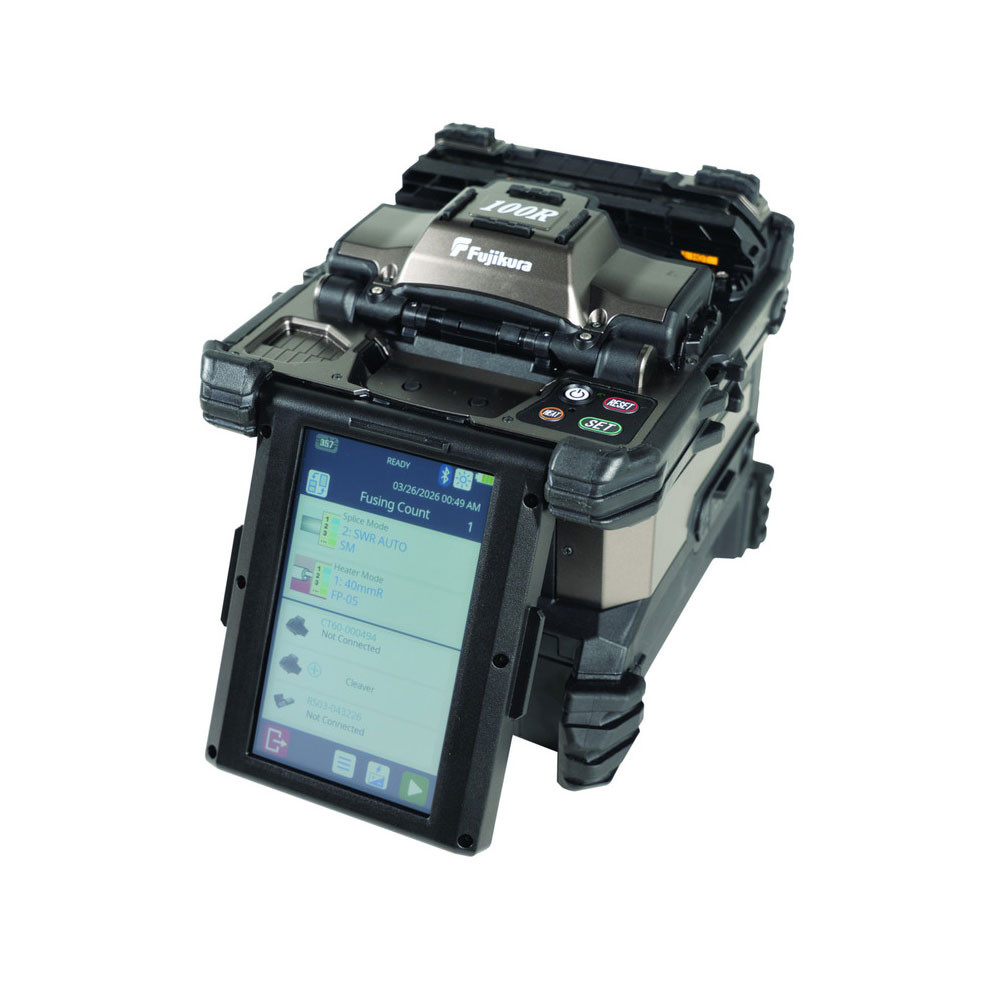

  • Graphical User Interface with 5.0" Touchscreen
  • Multi-function transit case with integrated workstation

  Applications

  • Data Center cable installation
  • High fiber count metro and campus networks
  • Long-haul network installs and repairs
  • Trunk cable repair with Splice-on MPOs
  • Ribbon splicing high-density cables with 200 μm loose fiber



  PRODUCT DESCRIPTION

  The Fujikura 100R mass fusion splicer introduces Intelligent Alignment Control to deliver more reliable, uniform splices by automatically correcting fiber placement, end‑face gaps, and axis alignment across all fibers.

  Intelligent Alignment Control in the 100R enhances splice reliability by automatically correcting improper fiber seating, minimizing end-face gap variation, and stabilizing fiber-axis alignment across all fibers. Adjustable control levels allow the system to balance precision and cycle time, ensuring the best splice results across broadband or hyperscale applications.

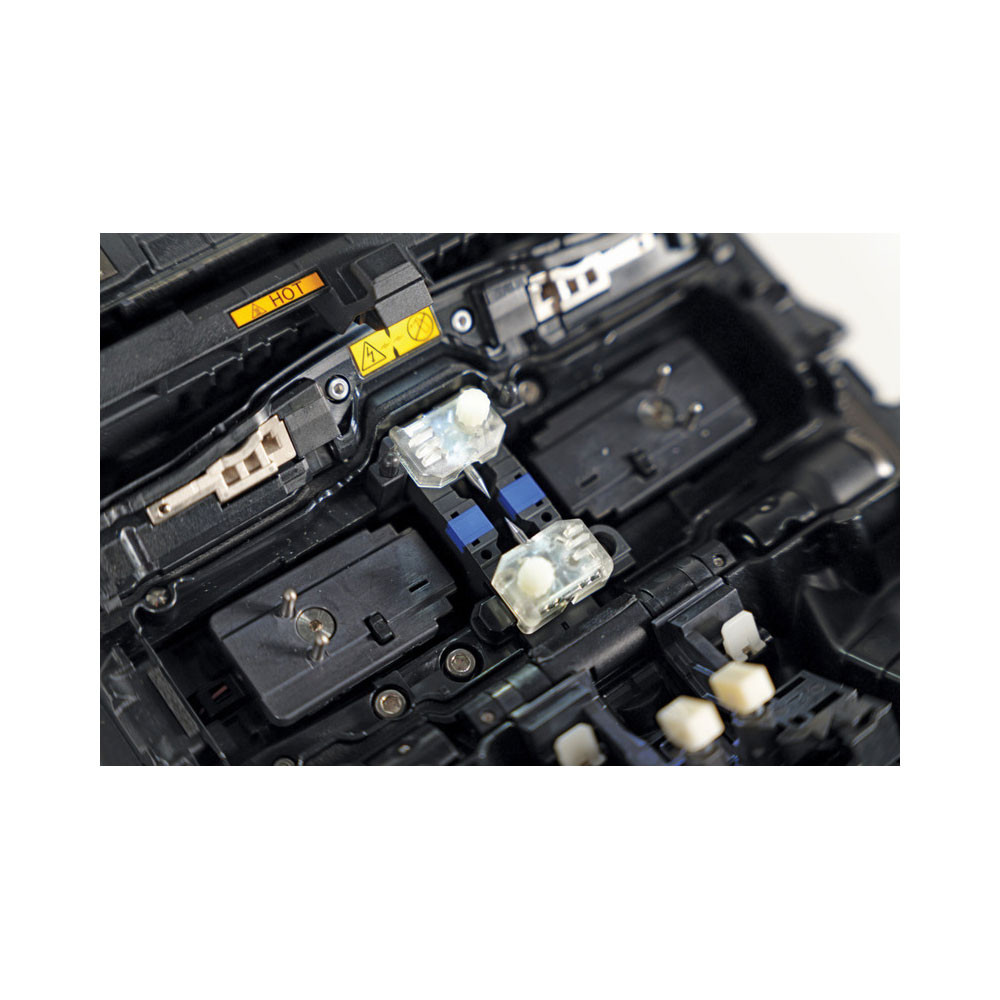

  Auto Placement Correction automatically detects and corrects fibers that are improperly seated in the V‑groove prior to fusion. By automatically lifting the clamp and adjusting the Z‑stage as needed, the system ensures proper fiber placement, reducing splice variability, and minimizing manual intervention.

  Gap Alignment Correction automatically reduces variation in endface gaps across fibers prior to fusion. By continuously adjusting alignment until the target range is met, the 100R improves splice uniformity and consistency while completing the correction in as little as one second.

  Axis Offset Correction reduces fiber axis position offsets across all fibers prior to fusion. By performing controlled, automatic alignment adjustments, the 100R improves splice uniformity and consistency while applying corrections only as needed to maintain efficient cycle times.

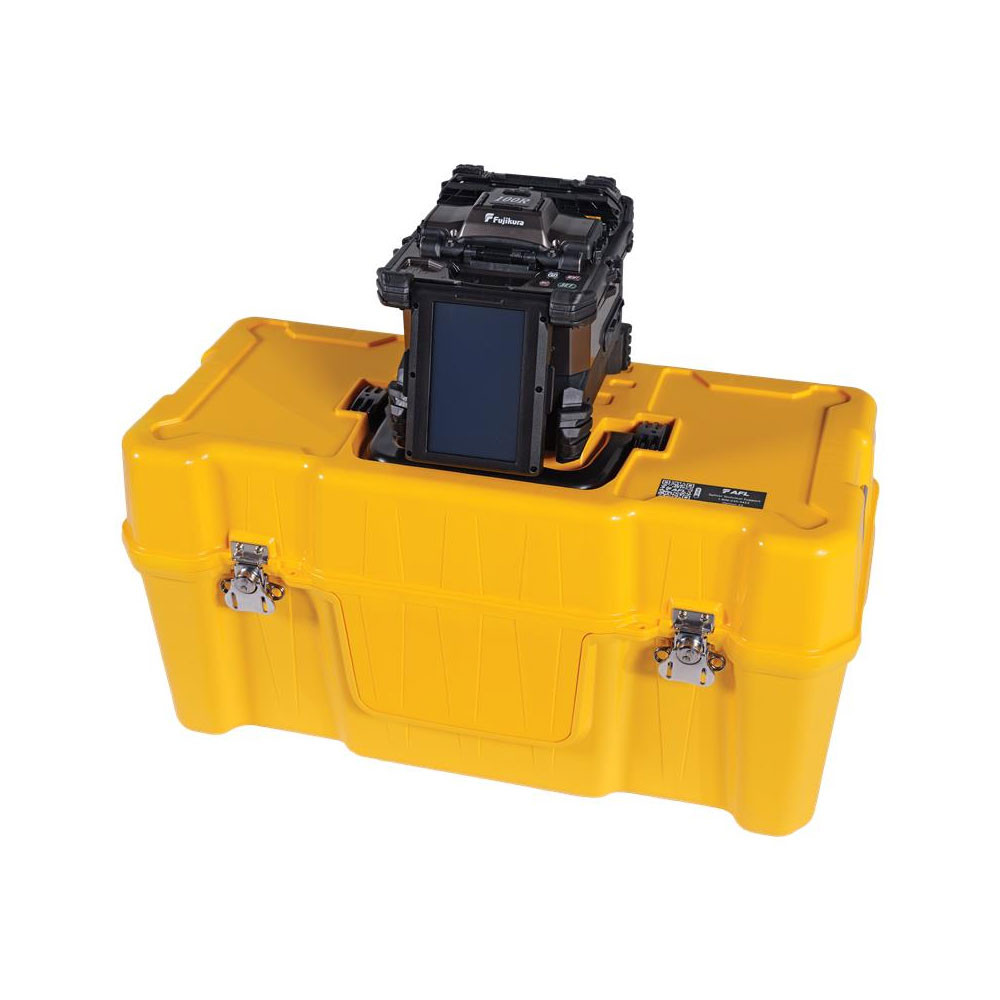

  With the Fujikura 100R, you can keep your splicer in the field longer thanks to the included, field-replaceable V-grooves. With the AFL Tote Solution installed, the 100R transit case securely integrates with Milwaukee's PACKOUT™ system, offering faster transport, stability, and time savings for contractors and technicians.

  Put our 100R to the test by contacting us to see its capabilities first-hand, 1-800-235-3423.
