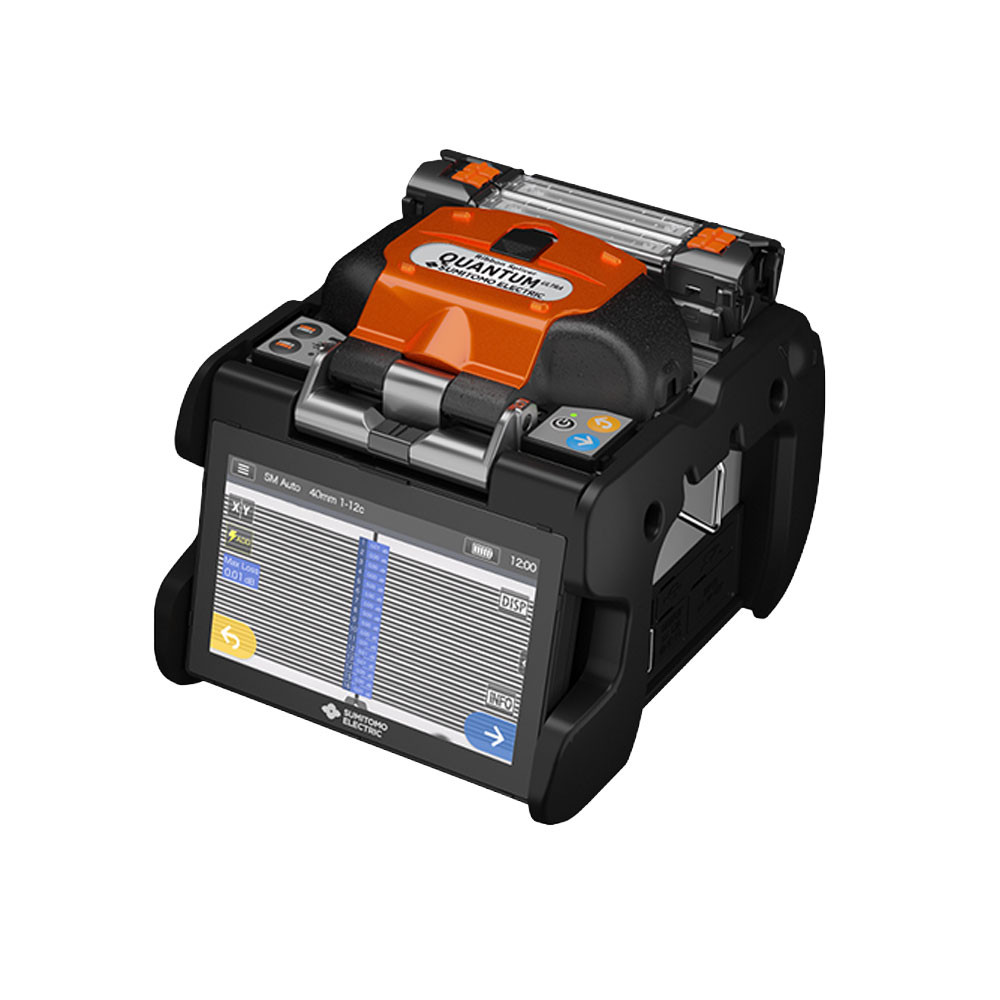

  • Sumitomo QULTRA-RBN 16F Ribbon Fusion Splicer Kit Plus

    • Sumitomo QULTRA-RBN 16F Ribbon Fusion Splicer Kit Plus

    Contact us @ 800-322-4525 for pricing

    (No reviews yet) Write a Review
    SKU:
    QULTRA-RBN
    Availability:
    Non-stock item. Ships from manufacturer in 3-5 days.

    The ultimate level of splice performance
    Clad Alignment
    assisted by Active-AIAS
    Insertion loss (typical) : 0.05dB for SMF
    Splice speed (typical) : 11 sec for SMF

    Quality and high speed protection
    Dual automatic independent oven
    Patented technology
    Heating time (typical) : 35 sec for 40mm ribbon sleeve

    Super long battery life
    Smart power monitor
    Splice while charging
    180 splice cycle

    Intuitive touch screen display
    5.0" WVGA LCD
    Smartphone-like intuitive operation

    Unsurpassed toughness when dropped
    Drop from 76cm on 5 faces
    (excluding the top face)

    IP52, Water & Dust resistance
    Dust; Equivalent to IP5x
    (Operates normally after 8 hours in a test chamber with circulating dust particles smaller than 75um)
    Water; Equivalent to IPx2
    (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5 min on each of 4 surfaces tilted at 15°)

    Product Description

    Sumitomo QULTRA-RBN 16F Ribbon Fusion Splicer Kit Plus

     Spec Sheet

    Sumitomo Electric announces the release of the Quantum-Ultra Ribbon – the next generation of future-proof ribbon fiber splicers. The new AI-enabled splicer with NanoTune™ technology is key to deploying next-generation hyper-scale networks. This future-proof machine has been designed to maximize work efficiency with state-of-the-art technology, including NanoTune™, E-ACAS, dual independent ovens, tool-free replaceable v-grooves, and special coatings. Using replaceable V-groove kits, the splicer becomes highly versatile  adapting to fiber counts of up to 16 and 250μm and 200μm pitch ecosystems. The Quantum-Ultra Ribbon is ready to support any network, no matter the fiber count or pitch requirements.

    Kit Includes:

    Quantum-Ultra Ribbon Fiber Splicer configured for 12f-250µm pitch. Includes
    Shipping Case, Spare Electrodes (ER-10), Cooling Tray, AC Interface/Battery,
    Charger with Power Cord (PS-Q102), Battery Unit (BU-102), V-groove Cleaning
    Brush (VGB-004), USB Cable 2.0, Fiber Protection Sleeves (FPS-6),
    Cleaning Kit (FUS-CLN-KIT-M)

    Main Features:

      • NanoTune™ Technology: AI-enabled software that automatically optimizes arc power and alignment to minimize splice loss in real-time.
      • High Capacity: Handles both standard and rollable ribbon fibers.
      • Dual Ovens: Features dual, independent heat-shrink ovens to maximize work efficiency and reduce cycle times.
      • Enhanced V-Groove Maintenance: Patented coating on V-grooves and lenses for easier cleaning and maintenance

      Standard Kit Includes

      • Quantum-ULTRA Ribbon Splicer
      • Thermal Jacket Remover (JR-7)
      • Battery Unit (BU-102) & AC Interface/Charger
      • Cooling tray, spare electrodes, and a hard shipping case
