Product Description
Wirewerks 1RU Rack Mount Enclosures LGX - PPW1U1
Manufacturer P/N - PPW1U1
-

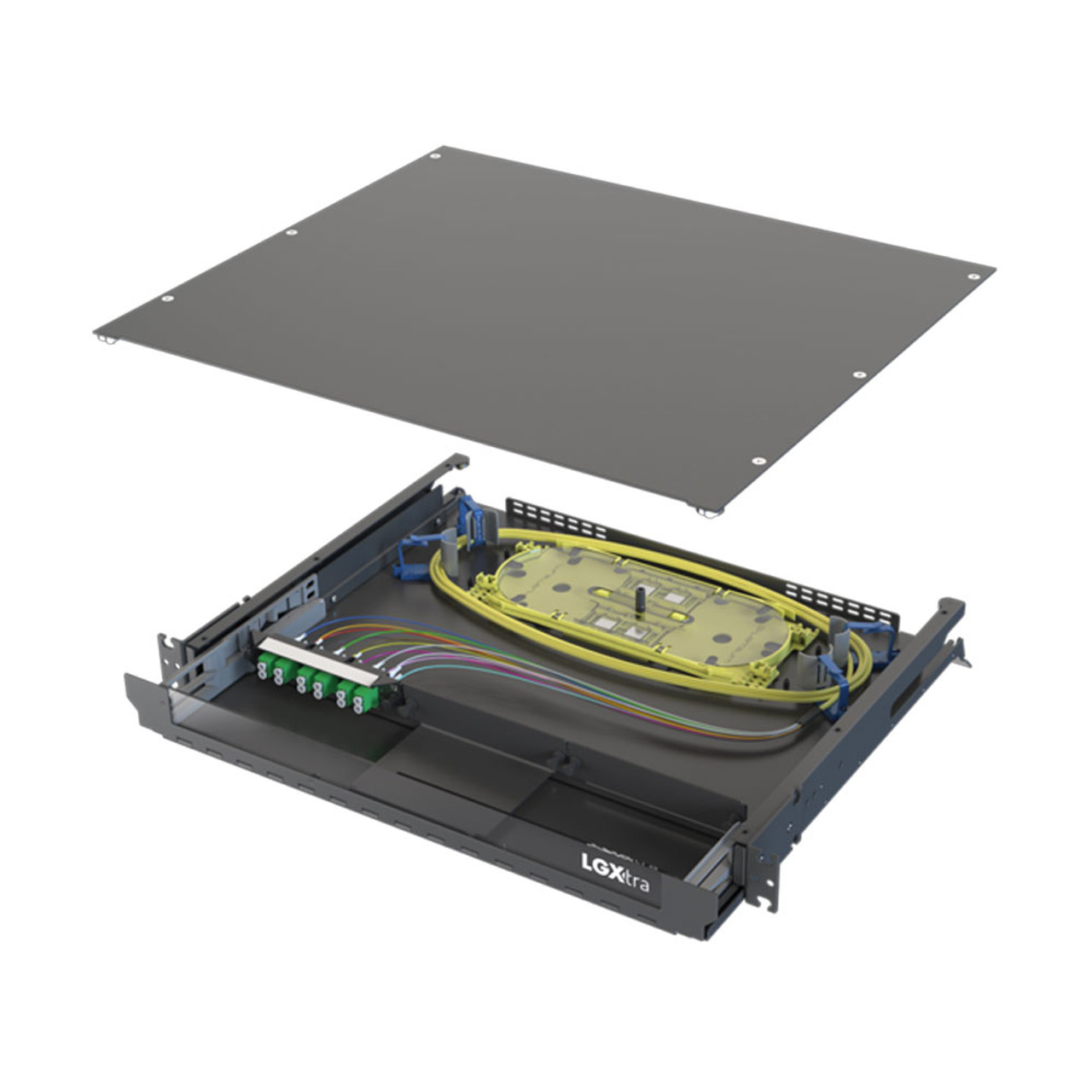

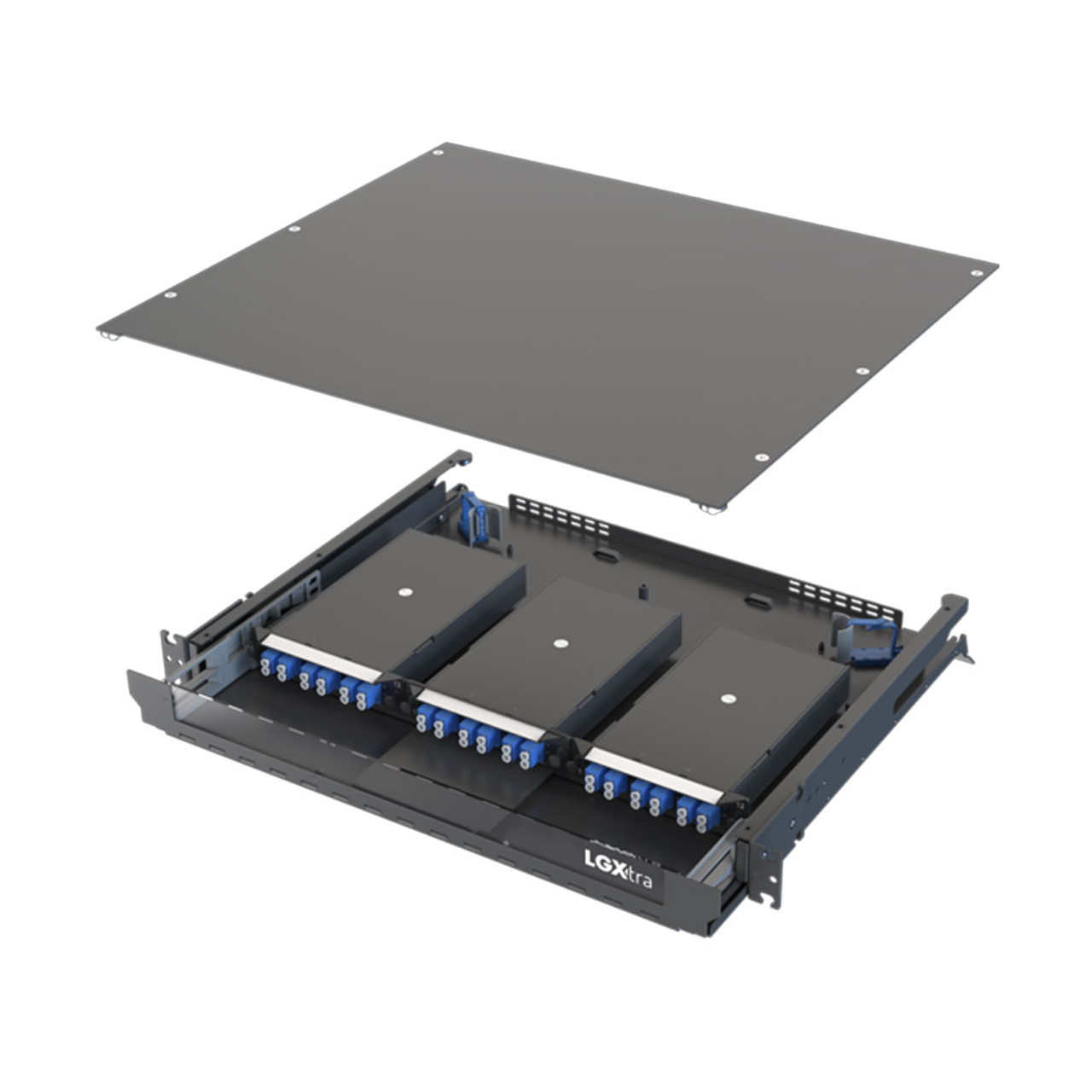

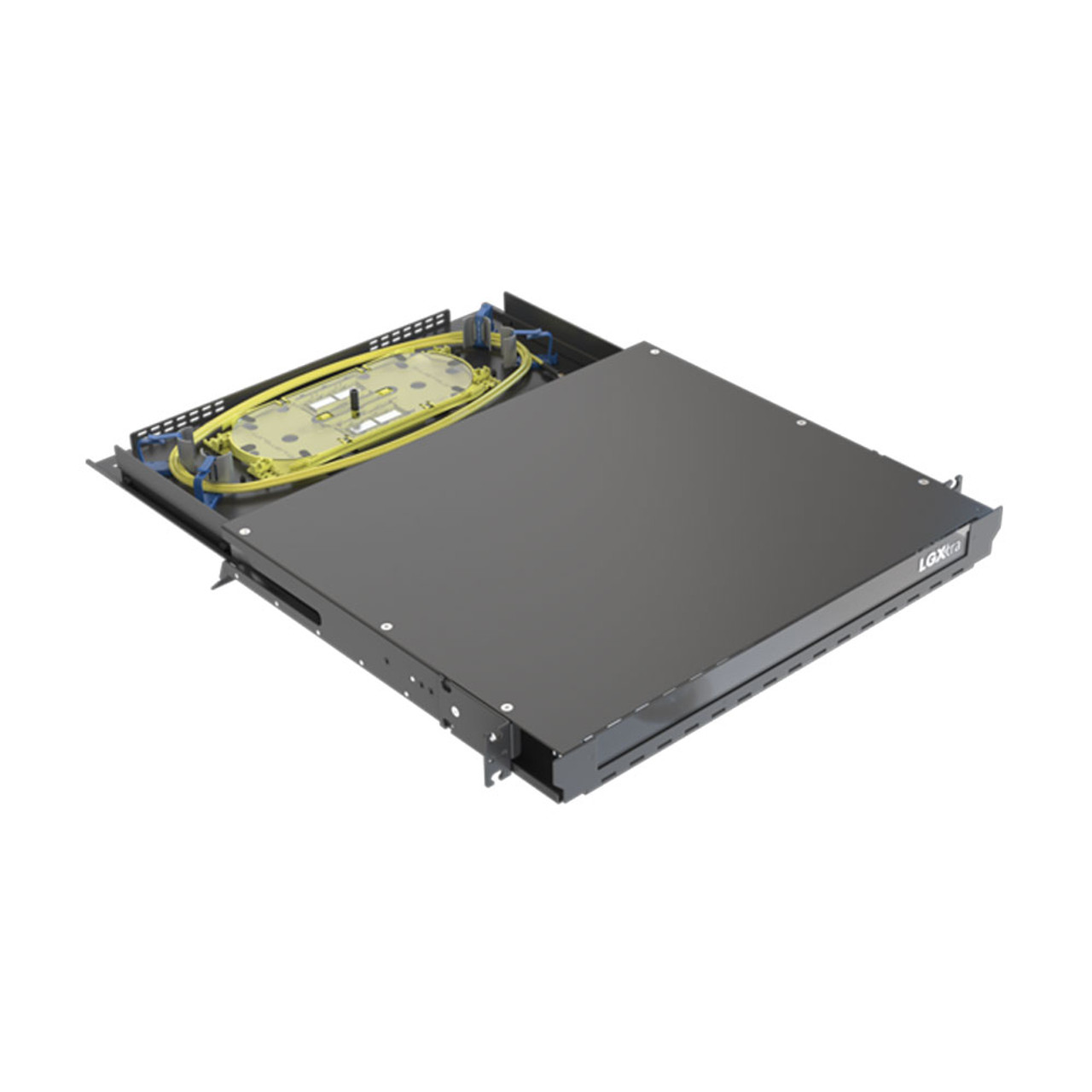

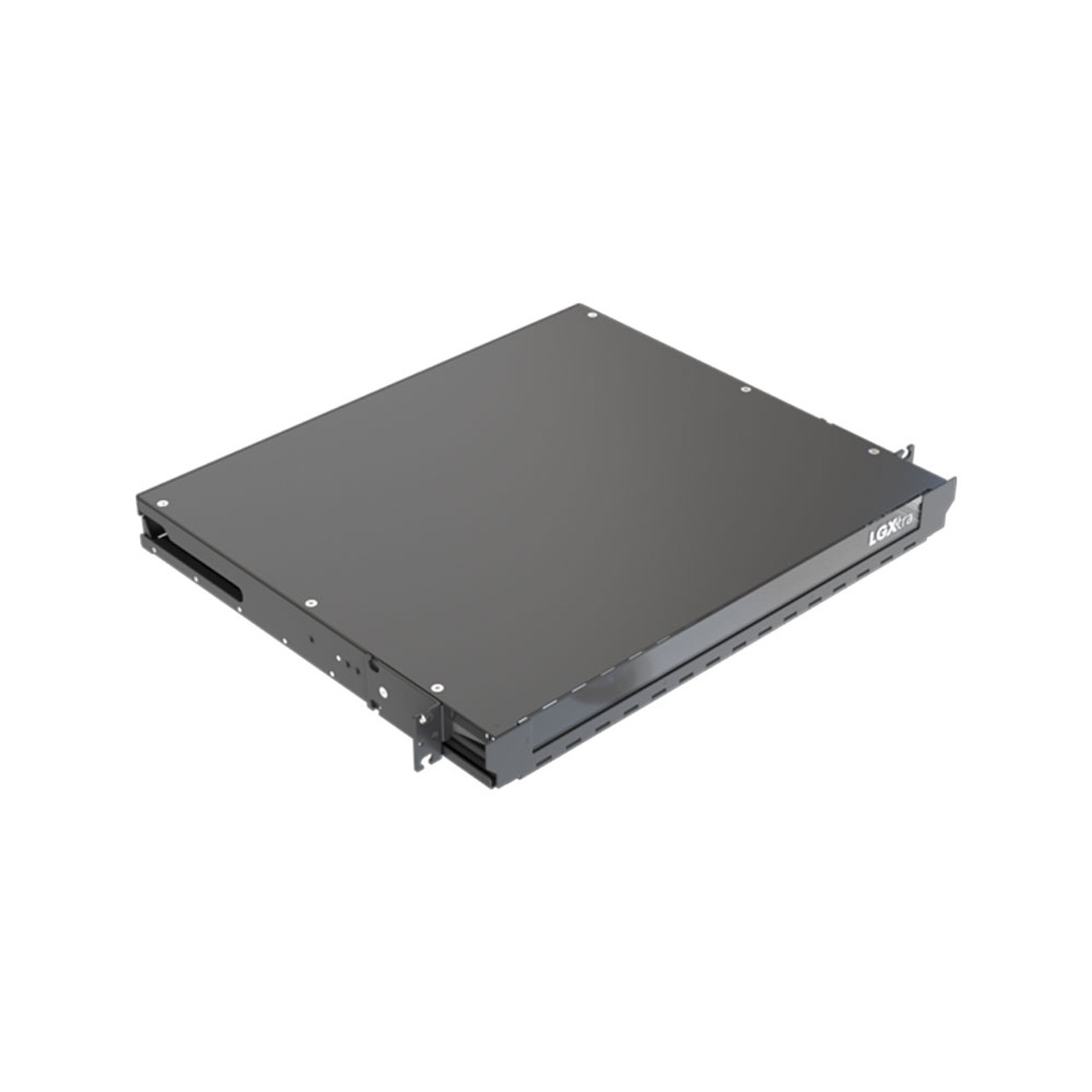

Wirewerks Optical Fiber 1U Rack Mount Patch Panel can house up to 3 LGX modular cassettes or fiber adapter strips. It provides a flexible system for managing fiber terminations and connections in a data center, head end, or telecommunication room. The patch panel is made of 16-gauge cold-rolled steel (CRS) with a black powder-coated finish. Equipped with a sliding drawer and a removable back cover, it provides simplified front access for internal cable manipulation and splicing.
- Sliding drawer for easy front and inside panel access
- Removable back cover
- Front and back flexible wire guard
- Fits 3 LGX adapter strips and cassettes
- Installation hardware and instruction manual included
- Compatible with 19" and 23" racks and cabinets
- Entrance Facility
- Data Center
- Telecommunications Room
- Equipment Room
- Consolidation Point
- Central Office
- Cellular Tower Base Station
- 3 x Self-adhesive port ID labels
- 2 x Warning labels
- 8 x Velcro 6" tie wraps
- 4 x Nylon 4" tie wraps
- 4 x Philips screws 12-24"/0.5" long
- 4 x Philips screws 10-32"/0.5" long
- 1 x Philips screw M4-6 mm
- 1 x Washer 9 mm for Philips screw M4
- 4 x Oval Philips screws M6-16 mm with plastic and metal washers
- 4 x Cage nuts square style for M6 Philips screws
- Fiber Count Capacity: 72F LC
- Plastic Materials: UL 94V-0 thermoplastic
- Panel Material: 16 gauge cold rolled steel (CRS)
- Panel Finish: Black Sandex
- Overall Dimensions: 17" x 14" x 1.74" (431.8 mm x 355.6 mm x 44.2 mm)
- Installation Temperature: -25° C (-13° F) ~ 40° C (104° F)
- Storage Temperature: -25° C (-13° F) ~ 55° C (131° F)
- Relative Humidity: ≤ 85% (30° C)
